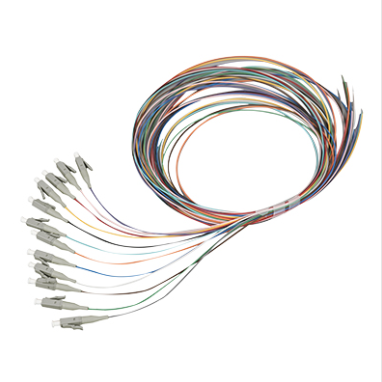

LC OM1/OM2 Multimode 12 Colors Pigtail
Connector A: LC Connector B:Unterminated
Fiber Mode: OM1/OM2 Fiber Count:Simplex
Fiber Grade: Bend Insensitive Minimum Bend Radius:30 mm
Polish Type: PC Cable Diameter: 0.9mm
Cable Jacket: PVC/LSZH Jacket Color: 12 Colors
Wavelength: 850nm, 1300nm Durability:>1000 Times
Insertion Loss:≤0.25 dB Interchangeability:≤0.2 dB
Return Loss:/ Vibration:≤0.2 dB
Operating Temperature:-40~85°C StorageTemperature: -40~85°C
Share
Related products
Describe
Product Description
Hola provide a full set of fiber optic patch cords customized services, such as fiber connector, length, color, fiber grade, specifications, materials, packaging, etc
All patch cords are functionally tested before shipping, ensure that the end face is spotless, insertion loss and return loss are in line with international telecommunication standards.
Specification
| parameter | LC Connector | |||
| SM | MM | |||
| PC | UPC | APC | PC | |
| Insertion loss | ≤0.25dB | ≤0.25dB | ≤0.25dB | ≤0.25dB |
| Return loss | ≥50dB | ≥55dB | ≥60dB | / |
| operating wavelength | 1310nm, 1550nm | 850nm, 1300nm | ||
| Ferrule Concentricity | ≤1um | ≤4um | ||
