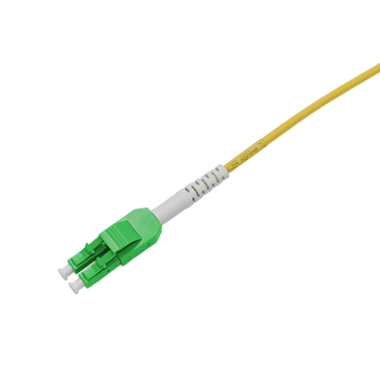

LC/APC 3.0 Uniboot Patch Cord With Switch Polarity-2
Connector A: LC Connector B:LC
Fiber Mode: 9/125 μm Fiber Count:Duplex
Fiber Grade: G.652D/G.657A2 Minimum Bend Radius:30 mm
Polish Type: APC Cable Diameter: 3.0mm
Cable Jacket: PVC/LSZH Jacket Color: Yellow
Wavelength: 1310 nm/1550nm Durability:>1000 Times
Insertion Loss:≤0.25 dB Interchangeability:≤0.2 dB
Return Loss:≥55 dB Vibration:≤0.2 dB
Operating Temperature:-40~85°C StorageTemperature: -40~85°C
Share
Related products
Describe
Product Description
Hola provide a full set of fiber optic patch cords customized services, such as fiber connector, length, color, fiber grade, specifications, materials, packaging, etc
All patch cords are functionally tested before shipping, ensure that the end face is spotless, insertion loss and return loss are in line with international telecommunication standards.
Specification
| parameter | SC Connector | |||
| SM | MM | |||
| PC | UPC | APC | PC | |
| Insertion loss | ≤0.25dB | ≤0.25dB | ≤0.25dB | ≤0.25dB |
| Return loss | ≥50dB | ≥55dB | ≥60dB | / |
| operating wavelength | 1310nm, 1550nm | 850nm, 1300nm | ||
| Ferrule Concentricity | ≤1um | ≤4um | ||
