Tension Resistant Clamp
Customization: Available
Type: Cable Fitting
Wiring Devices: Cable Fitting
Share
Related products
Describe
Product Features

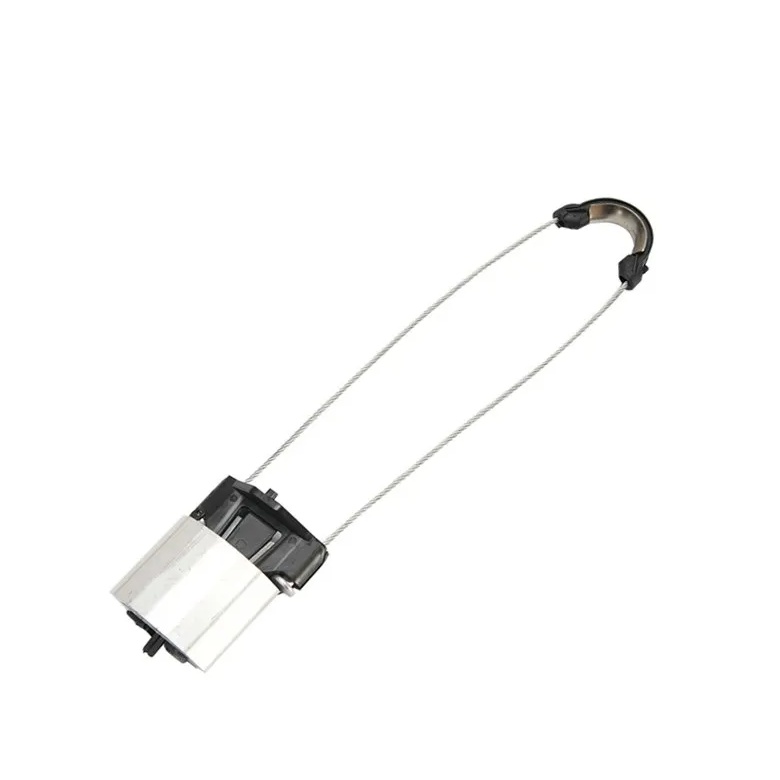

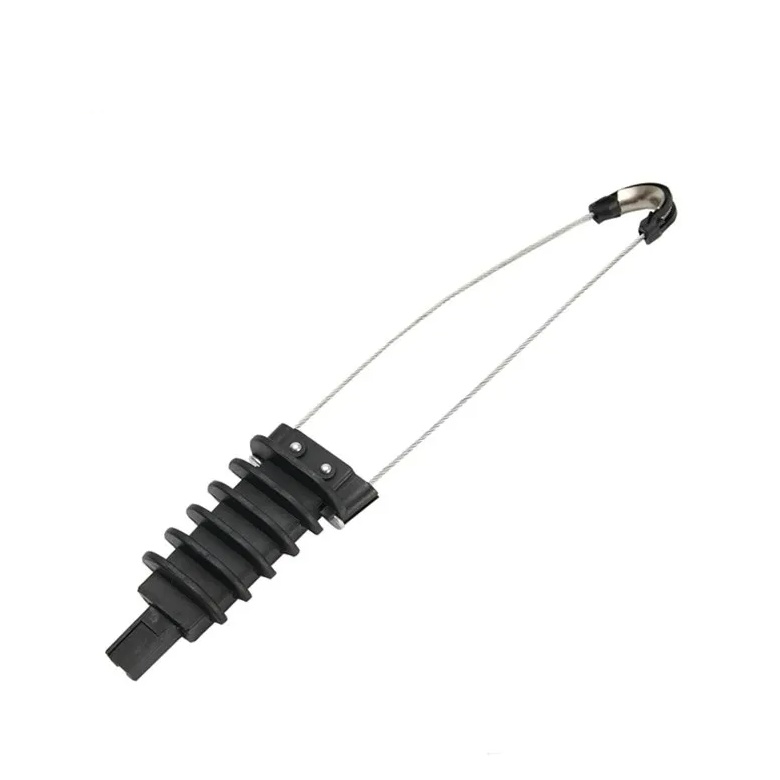

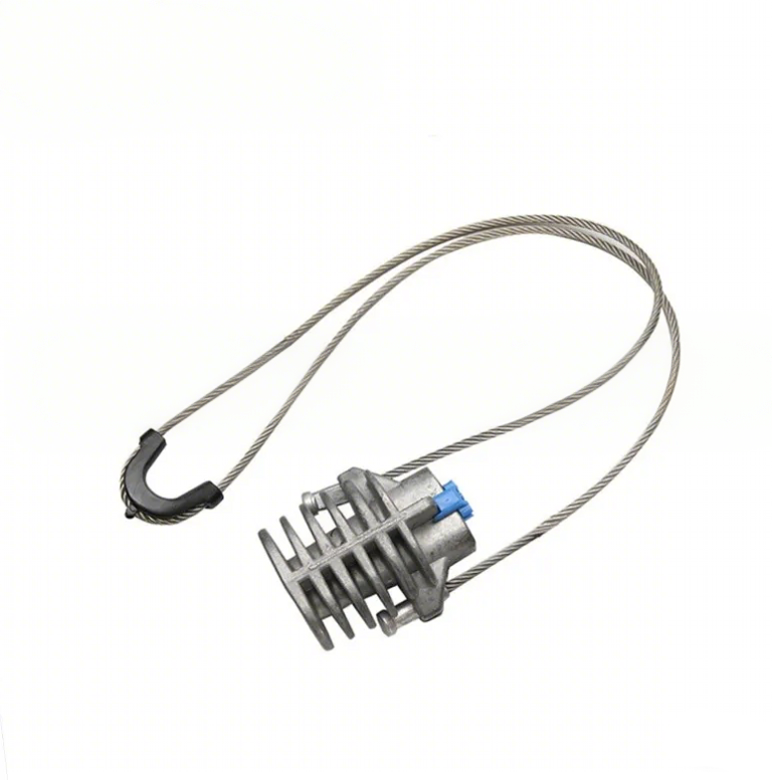

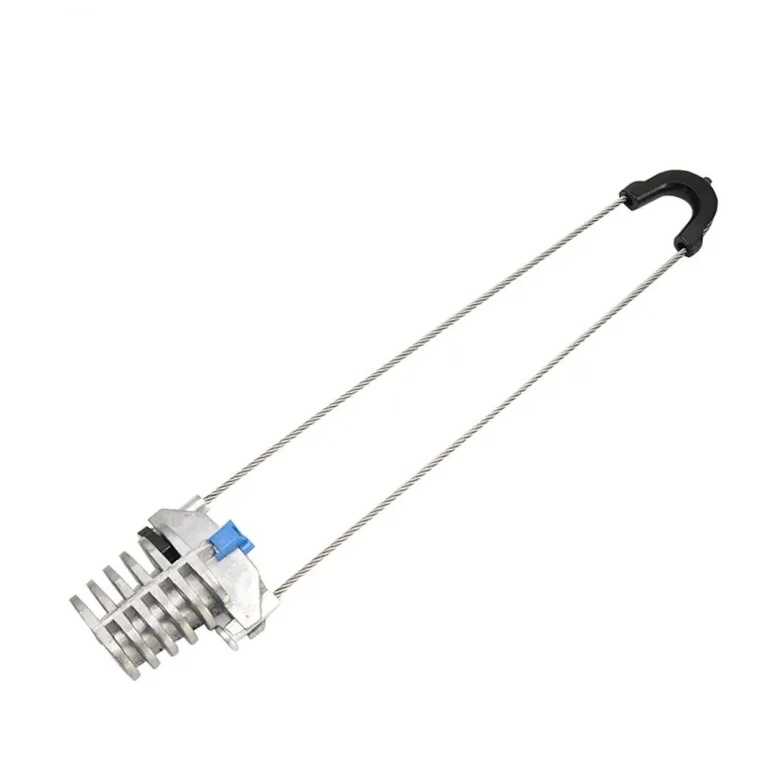

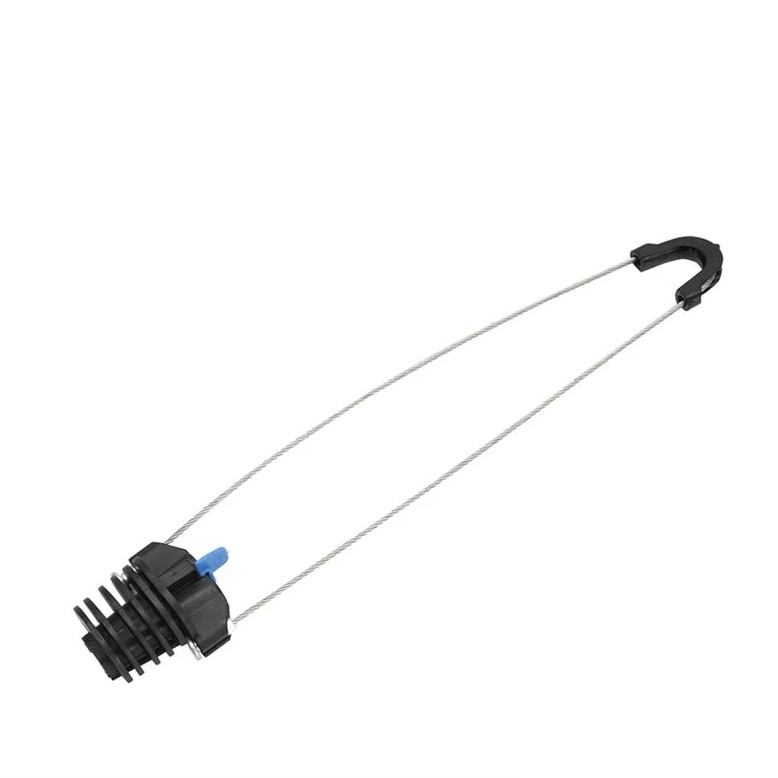

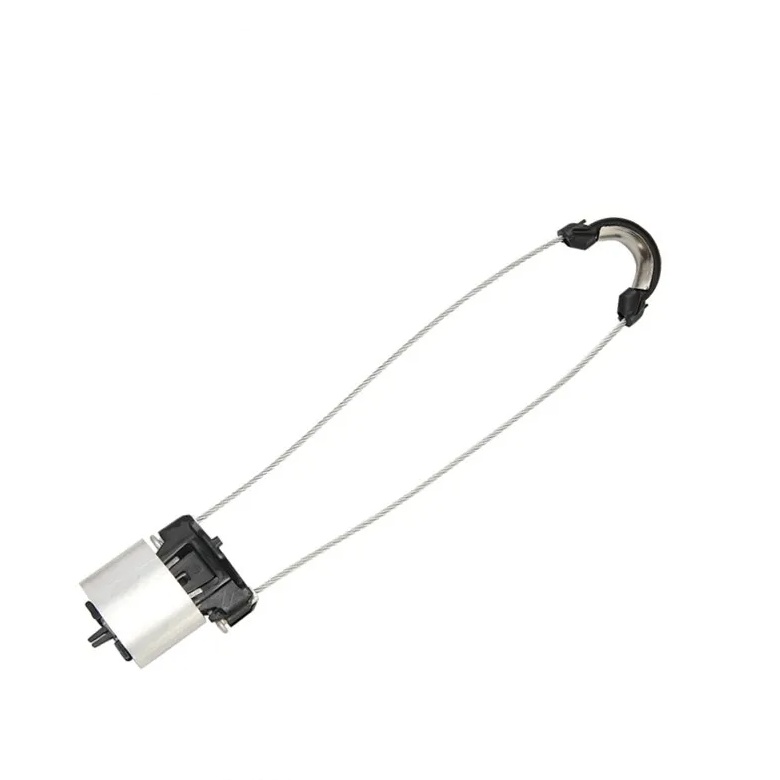

Tension clamps for cable with stainless steel or aluminum alloy messenger, are developed to anchor optical fiber cable with steel messenger during construction of transmission fiber optic lines. These anchoring clamps are self-adjusted and appropriate for usage with steel messenger. During anchoring of fiber optical cable, they guarantee no cable insulation damages or slipping, if indicated load achieved
Product Detail
| Name | Fiber Optic Cable Clamp | Fiber Optic Cable Clamp |
| Model | PA-37 | PA-69 |
| Cable Diameter | 3~7MM | 6~9MM |
| Tension Load | 2KN | 2KN |
| Weight | 0.15KG | 0.15KG |
| Material | Stainless Steel | Stainless Steel |
| Name | Fiber Optic Cable Clamp |
| Model | PA-07-520 |
| Cable Diameter | <7MM |
| Tension Load | 5.5KN |
| Weight | 0.19KG |
| Material | Stainless Steel |
| Name | Fiber Optic Cable Clamp |
| Model | PA-07 |
| Cable Diameter | <7MM |
| Tension Load | 5KN |
| Weight | 0.16KG |
| Material | Stainless Steel |
| Name | Fiber Optic Cable Clamp |
| Model | PA-10-500 |
| Cable Diameter | <7MM |
| Tension Load | 8KN |
| Weight | 0.34KG |
| Material | Stainless Steel |
