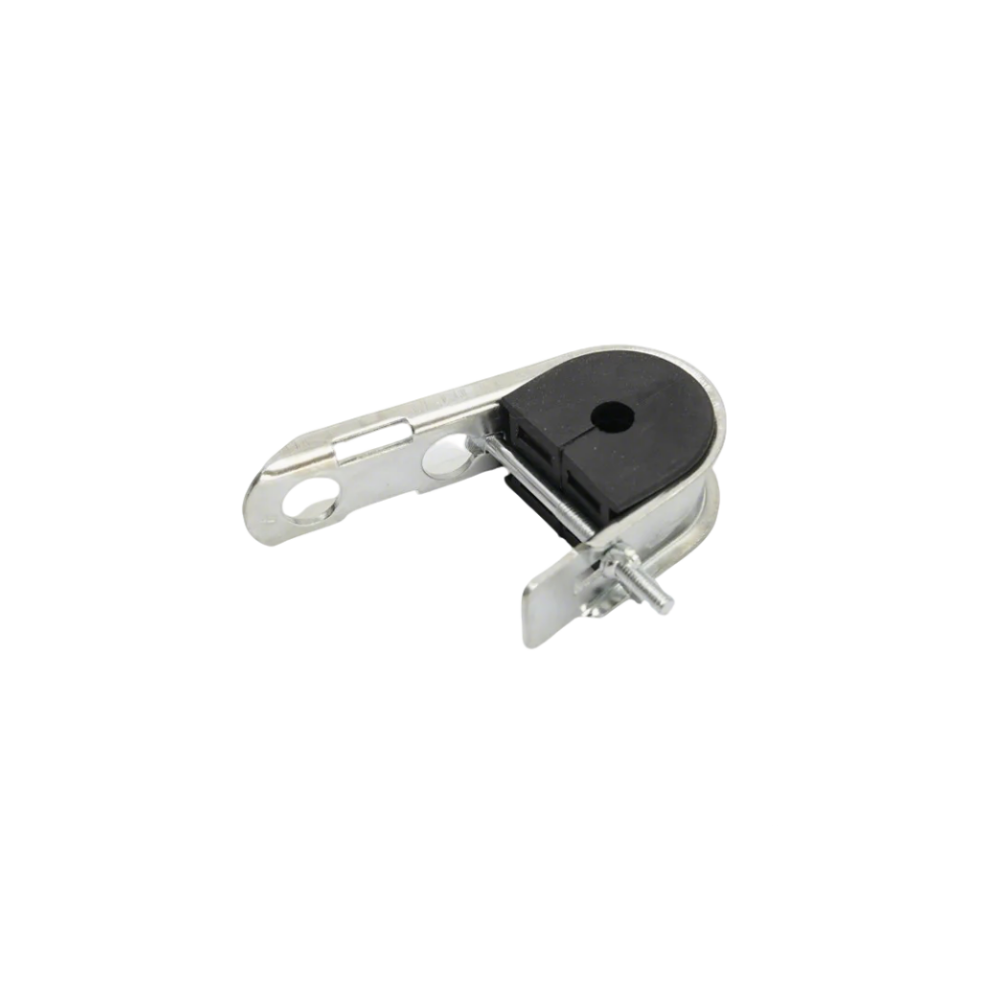

Optical Cable Fitting Fiber Optic J Hook Suspention Clamp
Customization: Available
Type: Cable Fitting
Wiring Devices: Cable Fitting
Compartir
Descripción
| Product Name： | DJ Hook Clampp | Cable Size: | 5-8mm; 10-15mm |
| Span： | 120m | Weight： | 0.57-0.59 |
| Material： | Galvanized Steel | Usage： | Dead End Clamp Suspension Clamp |
| Color： | Silvery White or Black | Specifications： | Cable Suspension Tension Clamp |
Product Features
optical cable fitting fiber optic J hook suspention clamp

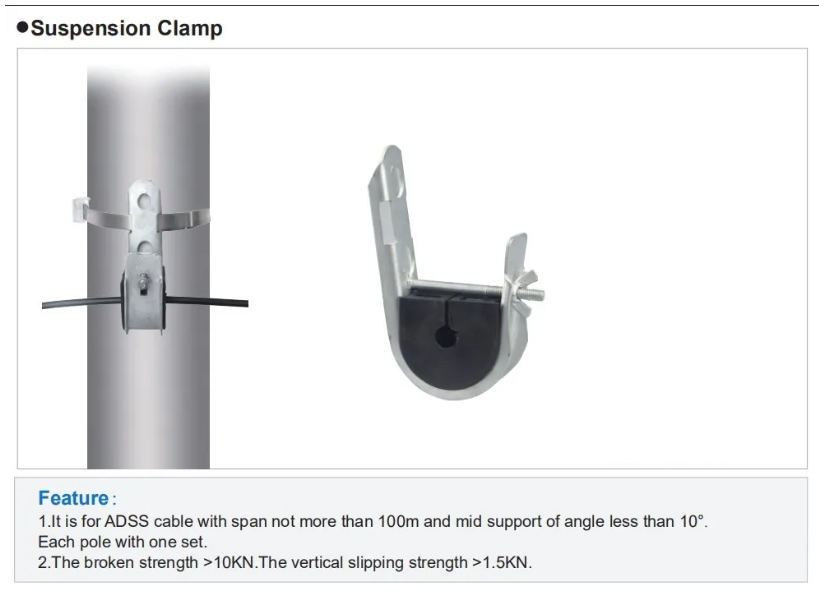

Hook clamps are designed to provide a suspension for 5 to 15mm aerial ADSS cables at intermediate poles on cable routes with angle < 20° on access networks (spans up to 120m).
Benefits:
• Two sizes to cover the full range of ADSS cables from 5 to 15mm..
• The shape of the J Hook allows a running out of the cable directly in the hook
• The suspension clamps can be directly secured to the poles using bolts or bandings.
They can also be installed on hook bolts to provide some flexible suspension point and give extra protection to the cable against wind induced vibrations
